The ZEISS ScanBox is designed to produce fast automated measurements with the highest precision. The standardised 3D measuring machines are for different applications and parts sizes – from locking hooks to complete car bodies. They are an all-in-one solution for programming, automated digitising, inspection and reporting.
Key Features

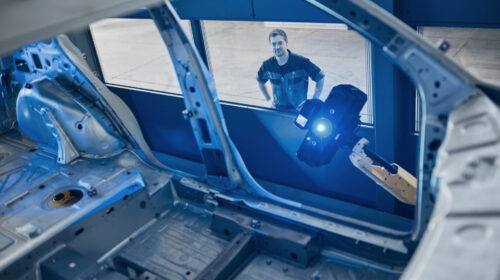

Accelerated measuring times
Through provision of full field 3D measurement coordinates; the ScanBox is 50-80% faster than traditional metrology which leads to faster results and less scrap.

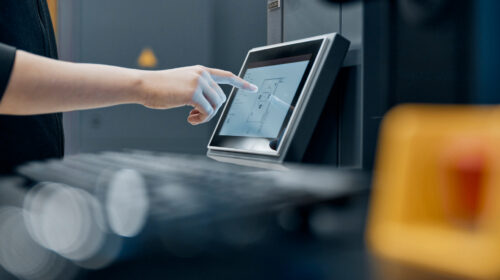

Easy Operation
The ScanBox is programmed and controlled via a simple user interface which enables automated process control at the touch of a button with no expert skills required.

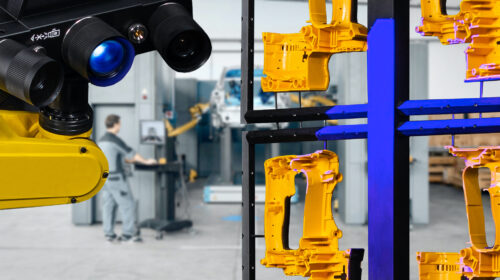

Numerous Applications
The ScanBox is available in various models for different part sizes and applications. From all-round systems to specialised solutions for specific requirements, the user benefits from customised industry solutions.

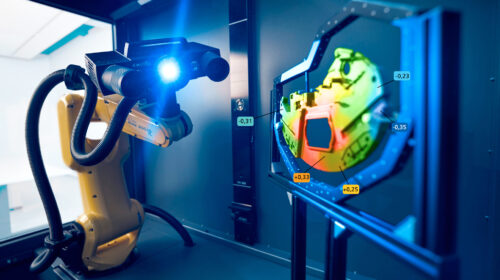

Effective Analysis Tool
Efficiently combining hardware and software; the ScanBox covers all the process steps – programming, automated digitisation, inspection and reporting. The accompanying software ZEISS INSPECT automatically generates GD&T information, therefore offering a complete solution for both simple and complex inspections.
ScanBox Series Models
The compact ZEISS ScanBox 4 system allows for location-independent 3D inspection of small and complex parts up to 500 mm in size.
ZEISS ScanBox Series 5 for the inspection of complex parts offers numerous options for individual upgrades.

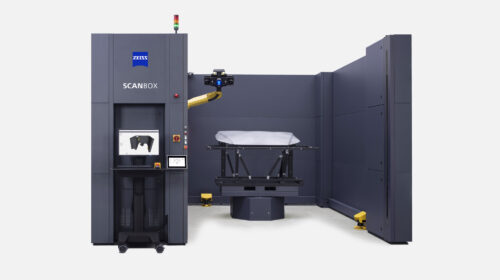

ScanBox Series 6
The automated shop floor metrology systems were developed specifically for measurements of large and heavy components. Inspection times are shortened, scrap production and rework are reduced to a minimum.

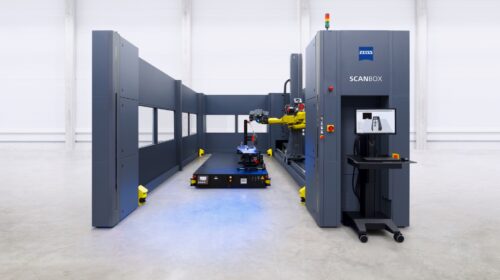

ScanBox Series 7
Thanks to an innovative 8-axis kinematics and very flexible sensor positioning, the ATOS ScanBox Series 7 realises full-field analysis measurements of large parts such as automotive side panels.

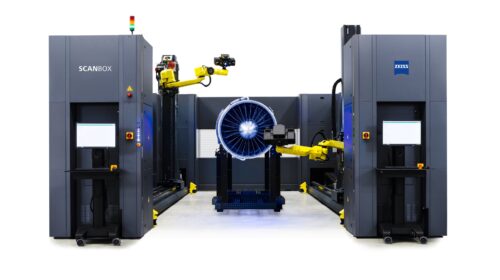

ScanBox Series 8
The two 8-axis kinematics of the ATOS ScanBox Series 8 enable full-field digitising of entire car bodies – from above, below, the side and inside.
